PTGN
Артикул:
Описание

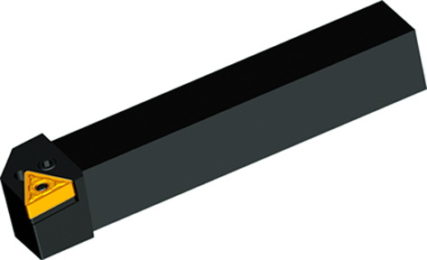

Токарный резец с креплением типа P с углом в плане 91° для сменных пластин TN** для продольного точения
| Артикул | L | b | S | h | a | e | |
|---|---|---|---|---|---|---|---|
| PTGNL1010E11 | △ | 70 | 10 | 14 | 10 | 10 | 16 |
| PTGNL1212F11 | △ | 80 | 12 | 16 | 12 | 12 | 14 |
| PTGNL1616H11 | ▲ | 100 | 16 | 20 | 16 | 16 | 18 |
| PTGNL2020K11 | ▲ | 125 | 20 | 25 | 20 | 20 | 19 |
| PTGNL2525M11 | ▲ | 150 | 25 | 32 | 25 | 25 | 20 |
| PTGNL1616H16 | ▲ | 100 | 16 | 20 | 16 | 16 | 20 |
| PTGNL2020K16 | ▲ | 125 | 20 | 25 | 20 | 20 | 20 |
| PTGNL2525M16 | ▲ | 150 | 25 | 32 | 25 | 25 | 20 |
| PTGNL3232P16 | ▲ | 170 | 32 | 40 | 32 | 32 | 20 |
| PTGNL2525M22 | ▲ | 150 | 25 | 32 | 25 | 25 | 28 |
| PTGNL3232P22 | ▲ | 170 | 32 | 40 | 32 | 32 | 28 |
| PTGNL3232P27 | ▲ | 170 | 32 | 40 | 32 | 32 | 33 |
| PTGNL4040S27 | ▲ | 250 | 40 | 50 | 40 | 40 | 33 |
| PTGNR1010E11 | △ | 70 | 10 | 14 | 10 | 10 | 16 |
| PTGNR1212F11 | △ | 80 | 12 | 16 | 12 | 12 | 14 |
| PTGNR1616H11 | ▲ | 100 | 16 | 20 | 16 | 16 | 18 |
| PTGNR2020K11 | ▲ | 125 | 20 | 25 | 20 | 20 | 19 |
| PTGNR2525M11 | ▲ | 150 | 25 | 32 | 25 | 25 | 20 |
| PTGNR1616H16 | ▲ | 100 | 16 | 20 | 16 | 16 | 20 |
| PTGNR2020K16 | ▲ | 125 | 20 | 25 | 20 | 20 | 20 |
| PTGNR2525M16 | ▲ | 150 | 25 | 32 | 25 | 25 | 20 |
| PTGNR3232P16 | ▲ | 170 | 32 | 40 | 32 | 32 | 20 |
| PTGNR2525M22 | ▲ | 150 | 25 | 32 | 25 | 25 | 28 |
| PTGNR3232P22 | ▲ | 170 | 32 | 40 | 32 | 32 | 28 |
| PTGNR3232P27 | ▲ | 170 | 32 | 40 | 32 | 32 | 33 |
| PTGNR4040S27 | ▲ | 250 | 40 | 50 | 40 | 40 | 33 |
