PSBN
Артикул:
Описание

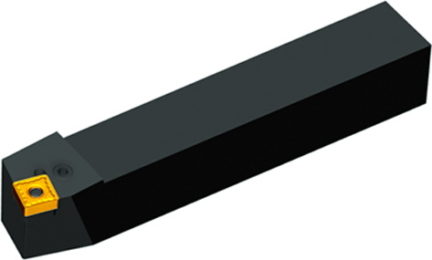

Токарный резец с креплением типа P с углом в плане 75° для сменных пластин SN** для продольного точения.

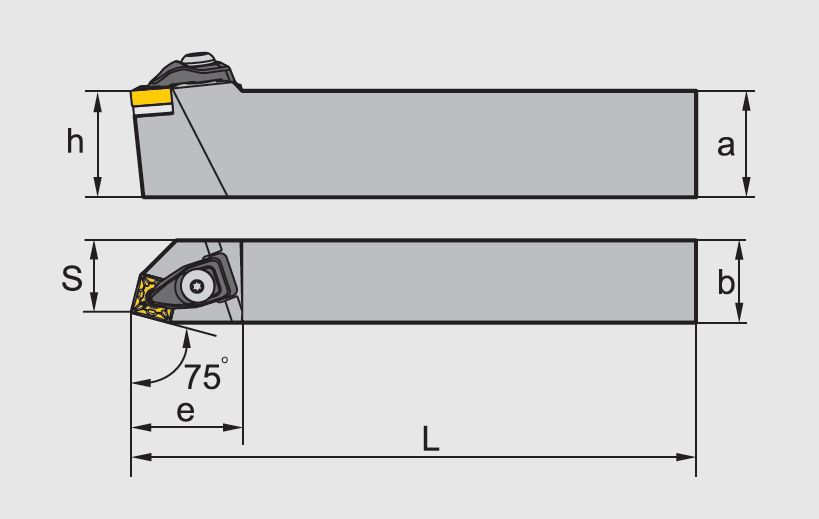

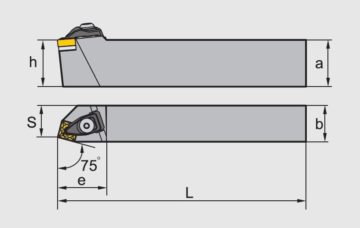

| L | b | S | h | a | e | ||
|---|---|---|---|---|---|---|---|
| PSBNL1616H09 | ▲ | 100 | 16 | 13 | 16 | 16 | 21 |
| PSBNL2020K09 | ▲ | 125 | 20 | 17 | 20 | 20 | 23 |
| PSBNL2020K12 | ▲ | 125 | 20 | 17 | 20 | 20 | 28 |
| PSBNL2525M12 | ▲ | 125 | 25 | 22 | 25 | 25 | 28 |
| PSBNL3225P12 | △ | 170 | 25 | 22 | 32 | 32 | 28 |
| PSBNL3232P12 | ▲ | 170 | 32 | 27 | 32 | 32 | 28 |
| PSBNL2525M15 | ▲ | 150 | 25 | 22 | 25 | 25 | 35 |
| PSBNL3232P15 | ▲ | 170 | 32 | 27 | 32 | 32 | 35 |
| PSBNL3232P19 | ▲ | 170 | 32 | 27 | 32 | 32 | 40 |
| PSBNL4040S19 | ▲ | 250 | 40 | 35 | 40 | 40 | 40 |
| PSBNL4040S2507 | ▲ | 250 | 40 | 35 | 40 | 40 | 48 |
| PSBNL4040S2509 | ▲ | 250 | 40 | 35 | 40 | 40 | 48 |
| PSBNR1616H09 | ▲ | 100 | 16 | 13 | 16 | 16 | 21 |
| PSBNR2020K09 | ▲ | 125 | 20 | 17 | 20 | 20 | 23 |
| PSBNR2020K12 | ▲ | 125 | 20 | 17 | 20 | 20 | 28 |
| PSBNR2525M12 | ▲ | 125 | 25 | 22 | 25 | 25 | 28 |
| PSBNR3225P12 | ▲ | 170 | 25 | 22 | 32 | 32 | 28 |
| PSBNR3232P12 | ▲ | 170 | 32 | 27 | 32 | 32 | 28 |
| PSBNR2525M15 | ▲ | 150 | 25 | 22 | 25 | 25 | 35 |
| PSBNR3232P15 | ▲ | 170 | 32 | 27 | 32 | 32 | 35 |
| PSBNR3232P19 | ▲ | 170 | 32 | 27 | 32 | 32 | 40 |
| PSBNR4040S19 | ▲ | 250 | 40 | 35 | 40 | 40 | 40 |
| PSBNR4040S2507 | ▲ | 250 | 40 | 35 | 40 | 40 | 48 |
| PSBNR4040S2509 | ▲ | 250 | 40 | 35 | 40 | 40 | 48 |
