FB54-CC
Артикул:
Описание

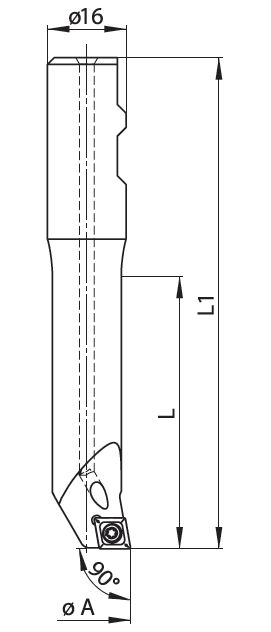

| Артикул | ØAmin. | ØAmax. | L | L1 | вес kg | 螺钉 | 扳手 |
|---|---|---|---|---|---|---|---|
| FB54-1015-CC06-75L | 9.75 | 15.1 | 30 | 75 | 0.08 | I60M2.5×5.5 | WT07IP |
| FB54-1217-CC06-80L | 11.75 | 17.1 | 35 | 80 | 0.08 | I60M2.5×6.5 | WT07IP |
| FB54-1419-CC06-85L | 13.75 | 19.1 | 40 | 85 | 0.1 | I60M2.5×6.5 | WT07IP |
| FB54-1520-CC06-90L | 14.75 | 20.1 | 45 | 90 | 0.12 | I60M2.5×6.5 | WT07IP |
| FB54-1621-CC06-95L | 15.75 | 21.1 | 50 | 95 | 0.12 | I60M2.5×6.5 | WT07IP |
| FB54-1823-CC06-100L | 17.75 | 23.1 | 55 | 100 | 0.14 | I60M2.5×6.5 | WT07IP |
| FB54-2025-CC06-105L | 19.75 | 25.1 | 60 | 105 | 0.14 | I60M2.5×6.5 | WT07IP |
| FB54-2025-CC09-105L | 19.75 | 25.1 | 60 | 105 | 0.14 | I60M4×8.4 | WT15IP |
| FB54-2530-CC06-115L | 24.75 | 30.1 | 85 | 115 | 0.22 | I60M4×8.4 | WT15IP |
| FB54-2530-CC09-115L | 24.75 | 30.1 | 85 | 115 | 0.22 | I60M4×8.4 | WT15IP |
