F114-CC
Артикул:
Описание
|
Артикул |

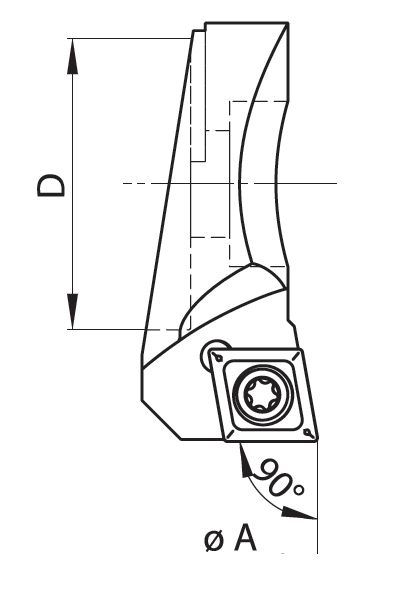

ØAmin. | ØAmax. | D | 重量kg | 螺钉 | 扳手 |
|---|---|---|---|---|---|---|
| FI14-2431-CC06 | 23.9 | 31.1 | 11 | 0.01 | I60M2.5×6.5 | WT07IP |
| FI14-3037-CC06 | 29.9 | 37.1 | 11 | 0.01 | I60M2.5×6.5 | WT07IP |
| FI14-3140-CC06 | 30.9 | 40.1 | 13 | 0.01 | I60M2.5×6.5 | WT07IP |
| FI14-3847-CC06 | 37.9 | 47.1 | 13 | 0.01 | I60M2.5×6.5 | WT07IP |
| FI14-4051-CC06 | 39.9 | 51.1 | 17 | 0.02 | I60M2.5×6.5 | WT07IP |
| FI14-4859-CC06 | 47.9 | 59.1 | 17 | 0.02 | I60M2.5×6.5 | WT07IP |
| FI14-5167-CC06 | 50.9 | 67.1 | 22 | 0.04 | I60M2.5×6.5 | WT07IP |
| FI14-6581-CC06 | 64.9 | 81.1 | 22 | 0.04 | I60M2.5×6.5 | WT07IP |
| FI14-67153-CC06 | 66.9 | 87.1 | 30 | 0.06 | I60M2.5×6.5 | WT07IP |
| FI14-67153-CC06 | 86.9 | 116.1 | 30 | 0.06 | I60M2.5×6.5 | WT07IP |
| FI14-67153-CC06 | 115.9 | 153.1 | 30 | 0.06 | I60M2.5×6.5 | WT07IP |
| FI14-67153-CC09 | 66.9 | 87.1 | 30 | 0.07 | I60M4×8.4 | WT15IP |
| FI14-67153-CC09 | 86.9 | 116.1 | 30 | 0.07 | I60M4×8.4 | WT15IP |
| FI14-67153-CC09 | 115.9 | 153.1 | 30 | 0.07 | I60M4×8.4 | WT15IP |
| FI14-85171-CC06 | 84.9 | 105.1 | 30 | 0.1 | I60M4×8.4 | WT15IP |
| FI14-85171-CC06 | 104.9 | 134.1 | 30 | 0.1 | I60M4×8.4 | WT15IP |
| FI14-85171-CC06 | 133.9 | 171.1 | 30 | 0.1 | I60M4×8.4 | WT15IP |
| FI14-85171-CC09 | 84.9 | 105.1 | 30 | 0.1 | I60M4×8.4 | WT15IP |
| FI14-85171-CC09 | 104.9 | 134.1 | 30 | 0.1 | I60M4×8.4 | WT15IP |
| FI14-85171-CC09 | 133.9 | 171.1 | 30 | 0.1 | I60M4×8.4 | WT15IP |
